Handheld High Resolution Infrared Thermal Imager Camera For Industry
Products Description

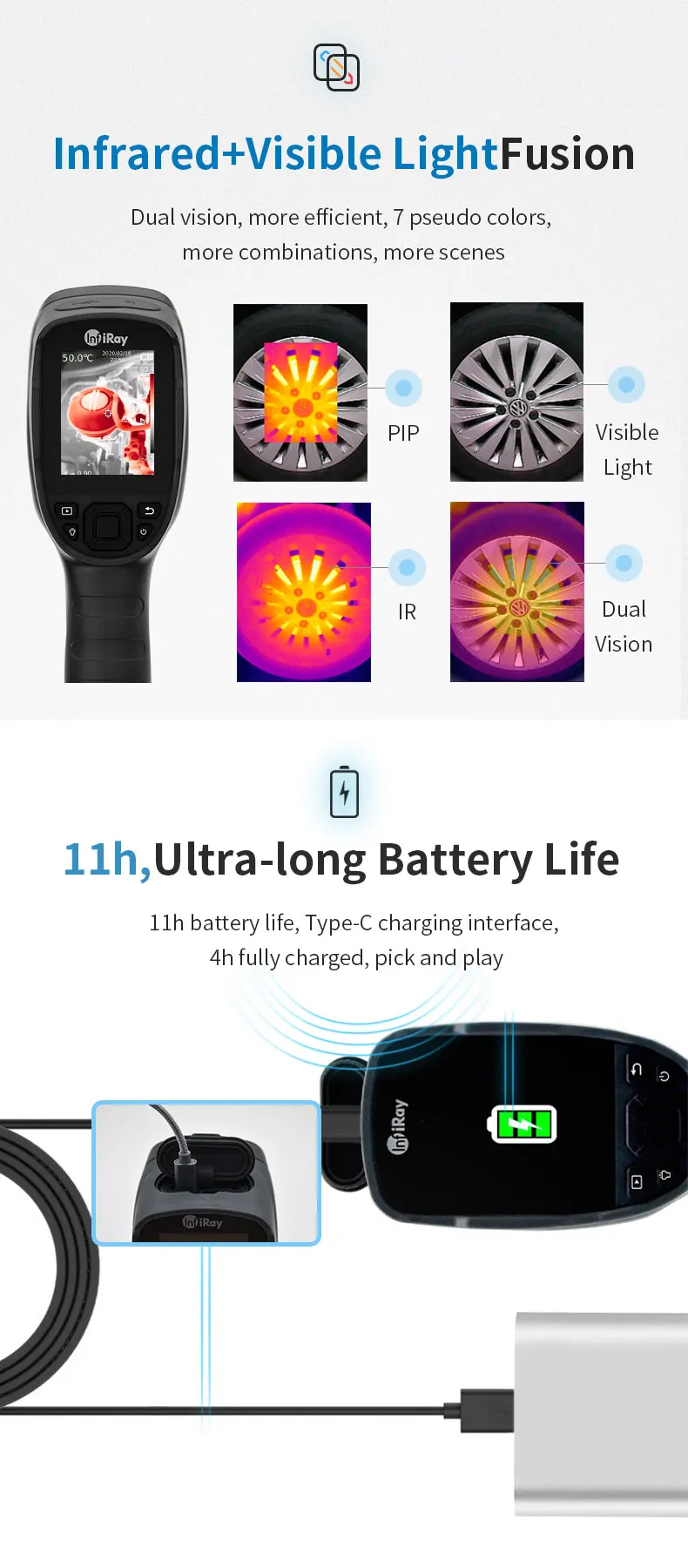

Tianshu C200 Handheld Thermal Camera adopts the infrared detector with nearly 50000 pixels. It has wide temperature range(-20 ℃~+550 ℃), infrared+visible light fusion, 7 pseudo colors+4 image modes, 11h working time, IP54 protection grade, and 2m drop-proof. All these advantages can fully meet the various application needs of electrical diagnostics, machinery/equipment maintenance, building inspection, property and household, and other occasions. It is easy to use, professional, and efficient.
|
IR Resolution
|
256×192
|
Image Modes
|
Thermal imaging, fusion, PIP, visible imaging
|
|
Pixel Pitch
|
12μm
|
Charging Time
|
About 4h, @25℃ indoor
|
|
NETD
|
<50mK
|
Operating Humidity
|
Relative humidity 10%~95%, non-condensing
|
|
FOV
|
56°×42.2°
|
Size（L×W×H）
|
237×75×92mm
|
|
IFOV
|
3.8mrad
|
Weight
|
520g
|
|
Focusing
|
Focus-free
|
Operating Temperature
|
-10°C~+50°C
|
|
Temperature
Measurement Accuracy |
±2℃ or ±2% of the reading (the larger one shall prevail)
|
Storage Temperature
|
-20°C~+60°C
|
|
Temperature
Measurement Resolution |
0.1°C
|
Drop Protection
|
2m
|
|
Measurement Tools
|
Central Spot measurement/Hotspot and cold spot tracing
|
IP encapsulation
|
IP54
|
